Axial Fan

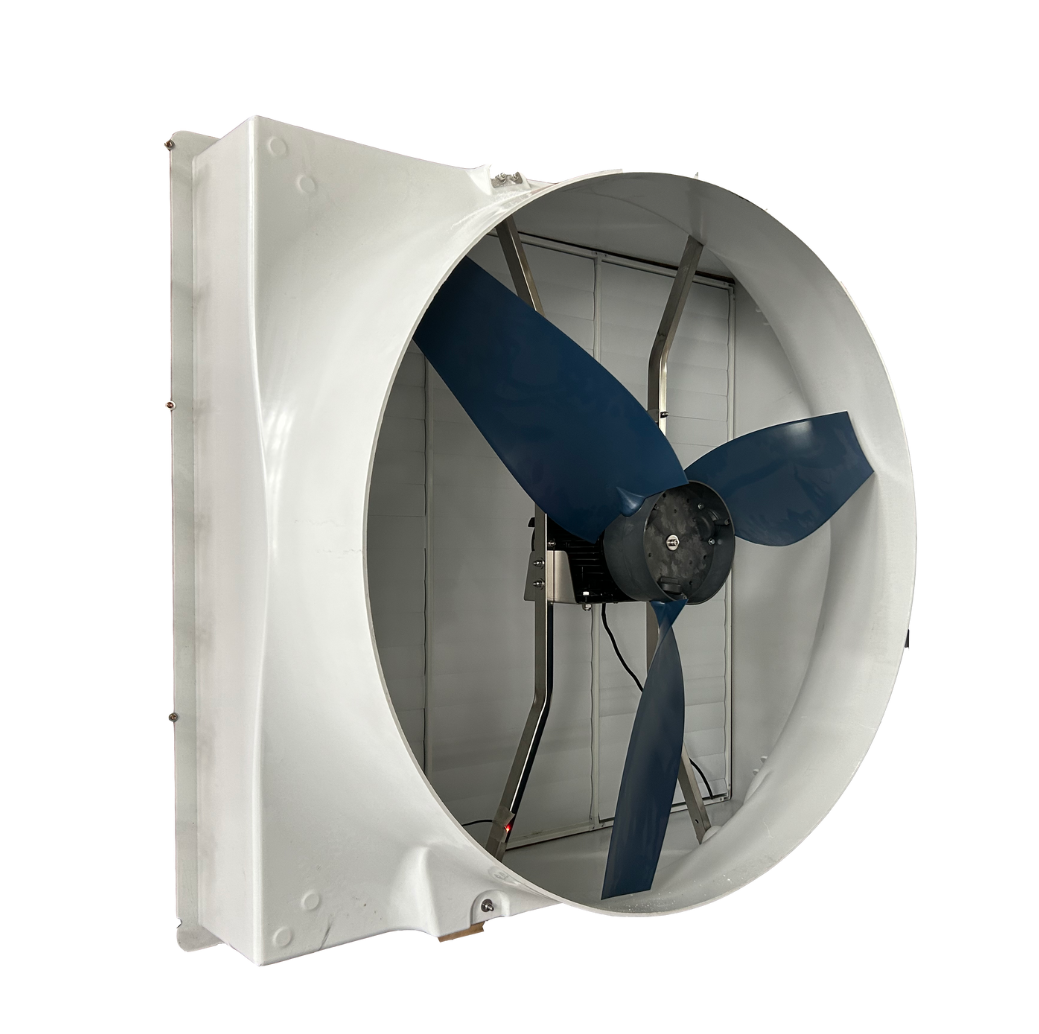

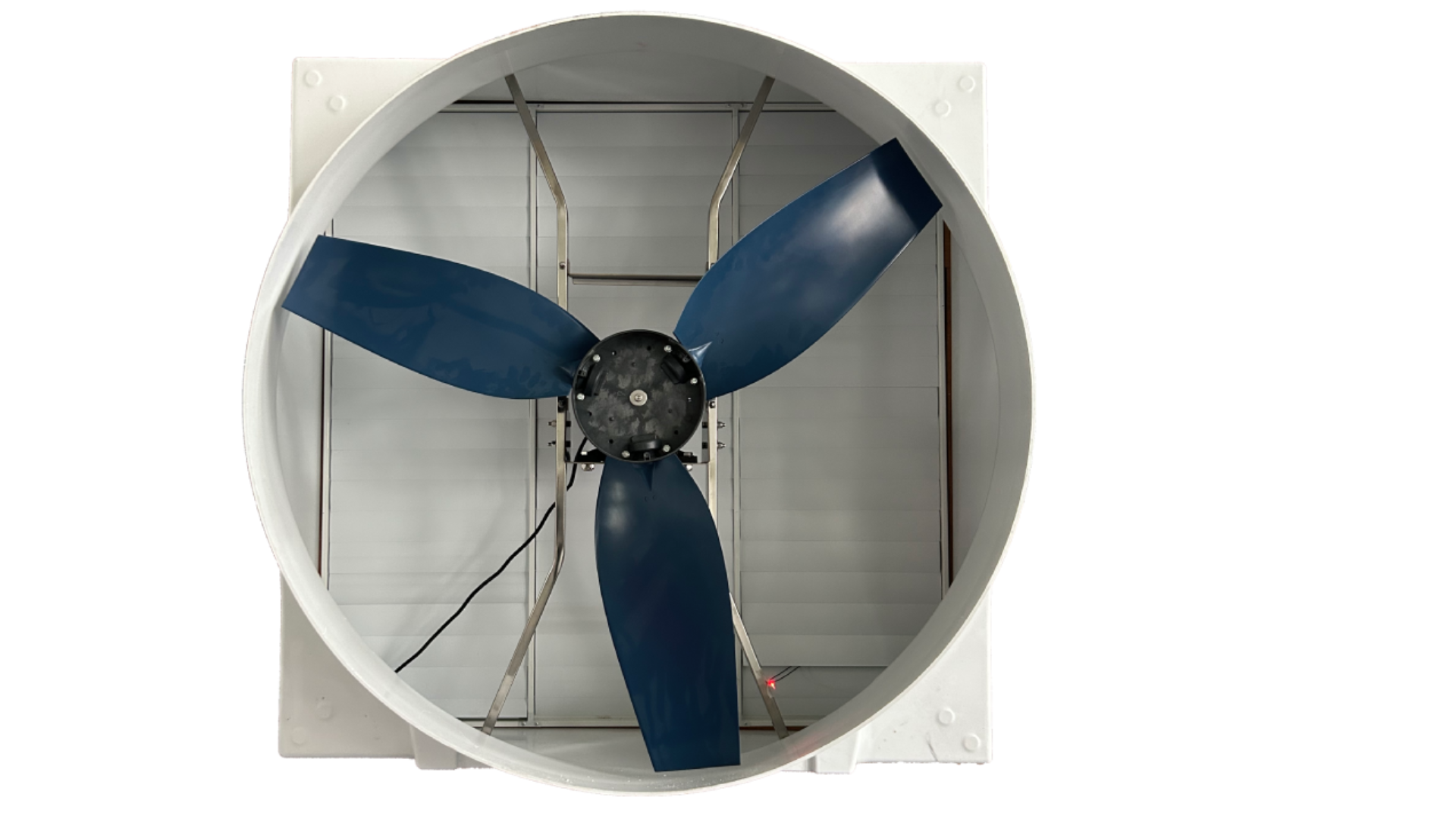

Fiberglass High Pressure Fan (FHP51)

Overview

FHP51 high-pressure fiberglass fan is designed with a streamlined and compact housing. Its outstanding performance in terms of high torque allows it to reach a high-pressure operating point of up to 300 pascals, with unique stability in pressure drop, reducing airflow decay. The FHP51 utilizes an IE4 permanent magnet synchronous high-efficiency motor to drive the fan blades directly, achieving higher efficiency and torque. The product's structural design includes a 304 stainless steel support bracket and a corrosion-resistant fiberglass housing, ensuring a long lifespan.

Check More

Specs

Model

AC/EC

Size

51"/36"/24"

Pascal

0-300Pa

Power

>33000 m3/hr@100Pa

Features

Main operating points at 100-150-200-250 pascals, with a focus on high-pressure conditions.
Use of a high-efficiency motor, IE4 permanent magnet synchronous motor.
Control via analog signals (0-10V) or RS485 communication.
Independent controller for reading motor data and overload protection.
Aerodynamic design
Anti corrosion material combination and long life time
